Muchmore Racing

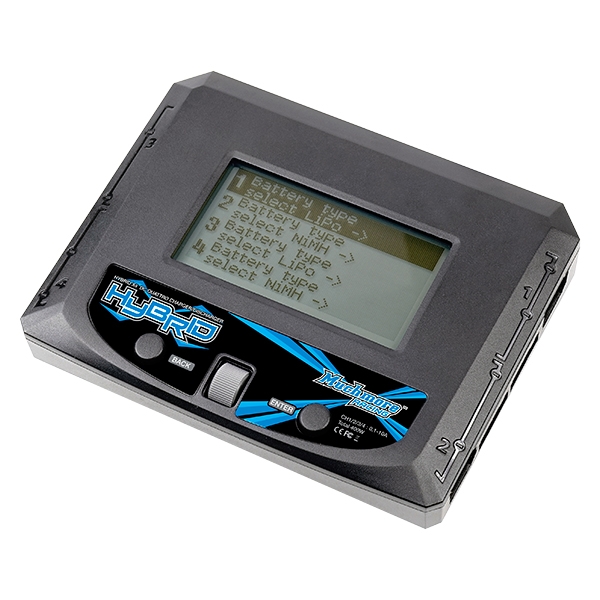

●  MM-HYX4    Hybrid X4 DC Quattro Charger
- Product Detail View -
MM-HYX4 Hybrid X4 DC Quattro Charger ハイブリッドX4 DCクアトロバランスチャージャー by Muchmore Racing Co., Ltd

4CH CHARGING / BACKLIGHT LCD DISPLAY

Hybrid 4X DC Charger can charging or discharging from 4 different battery types at the same time.
Hybrid 4X DC Charger is equipped with a large LCD screen to view all four channels.
Backlight is equipped  you can see LCD in dark place.

MM-HYX4 Hybrid X4 DC Quattro Charger ハイブリッドX4 DCクアトロバランスチャージャー by Muchmore Racing Co., Ltd

Real time Each channel processing / Each 100W charging

Hybrid 4X DC Charger is each channel operates individually, and each 100W can be charged.
You can operate other channels even if you are operating the selected channel.

MM-HYX4 Hybrid X4 DC Quattro Charger ハイブリッドX4 DCクアトロバランスチャージャー by Muchmore Racing Co., Ltd
 XT60 STYLE OUTPUT & BALANCE PORTS

Hybrid X4 charger is built Li-Fe or LiPo 2 ~ 6S cell XH2.5 balancing ports all in one, no need a separate balancing board.
MM-HYX4 Hybrid X4 DC Quattro Charger ハイブリッドX4 DCクアトロバランスチャージャー by Muchmore Racing Co., Ltd

BUILT-IN DC INPUT PORT

Hybrid X4 charger attached built-in DC power input port.
You can use input DC 10~18V. (XT60 Type)

IC TEMPERATURE COOLING FAN

Hybrid 4X DC Charger is equipped IC controlled cooling fans.
This system is checking to the internal temperature of the charger, protect from high temperature of device.


MM-HYX4 Hybrid X4 DC Quattro Charger ハイブリッドX4 DCクアトロバランスチャージャー by Muchmore Racing Co., Ltd
COMPACT SIZE DESIGN

Although it is a 4 channel, it is designed in a compact size, and it is very convenient to carry.

MM-HYX4 Hybrid X4 DC Quattro Charger ハイブリッドX4 DCクアトロバランスチャージャー by Muchmore Racing Co., Ltd


- Specifications -
CHARGE POWER 100Wx 4 CHARGE CURRENT 0.1-10A x 4
BALANCING CURRENT 0.5A / cell DISCHARGE POWER 10.0W x 4
DISCHARGE CURRENT 0.1-2.0A x 4 DC INPUT 10-18VDISPLAY : BACKLIGHT LARGE LCD
Li-Po / Li-Hv / Li-Fe / Li-Ion 1-6cells Ni-Cd / Ni-Mh 1-15cells
Pb(Lead Acid) 2-20V MEMORY 10 Memorise
DIMENSIONS 133.5 x 105.5 x 51mm (L x W x H) WEIGHT 397g
